CROSARC MIG 493S – Air Cooled
£3,390.00 + VATThe CROSARC MIG 493s is a highly efficient, latest technology inverter based power source supplied with a dynamic 4 roll active wire feed system. The MIG 493s air cooled package is supplied with a 5 meter interconnecting cable as standard. The user friendly control panel allows easy set up of all welding parameters, resulting in exceptional welding performance and flexibility suited to a wide range of heavy duty industrial and fabrication applications.
| Brand | CROSARC |
|---|---|
| SKU | CAP0960 |
| Function | MIG |
|---|---|
| Current Type | AC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Voltage | Three Phase: 400v (+ - 20%) 50/60Hz |
|---|---|
| Input Current | 32 Amps |
| Voltage Adjustment Range | 12 - 45v |
| Wire Speed | 0 - 25m/min |
| Arc Adjustment | -9 soft to +9 hard (default 0) |
| Current Range |
30-500 Amps |
| Duty Cycle | @ 40°C: 500 Amps @ 60% |
| Efficiency | 87% |
| Power Factor at 100% | 0.90 |
| Protection/Insulation Class | IP23/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 685 |
|---|---|
| Width | 300 |
| Length | 560 |
| Weight | 103Kg |
Functions
- MIG/MAG
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
- Variable Inductance
Features
- Latest IGBT Inverter Power Source

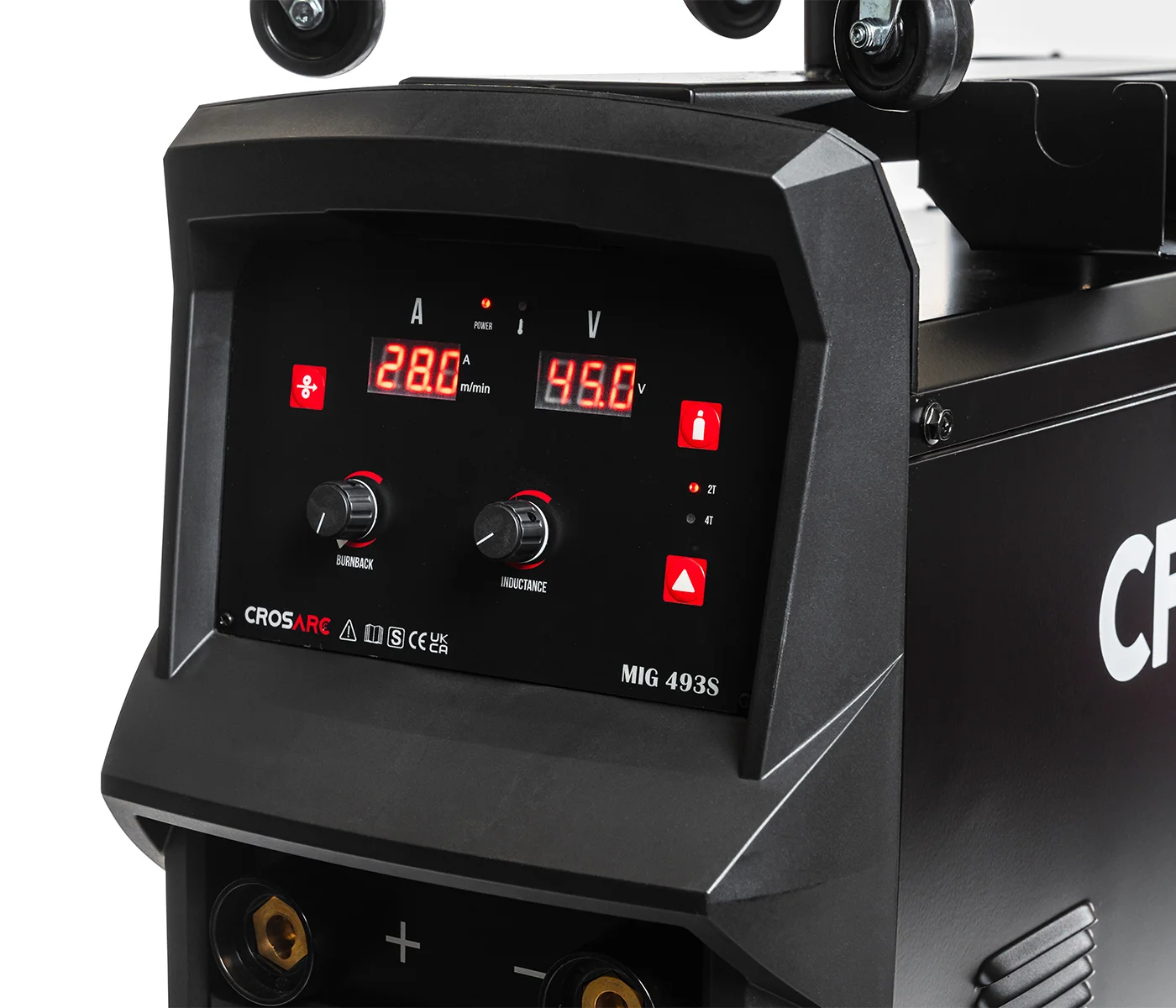

- Digital Volt / Amp Display
- Independent Voltage & Amperage Adjustment
- 4 Roll Wire Feed Unit
- Suitable for 0.6, 0.8, 1.0, 1.2 & 1.6mm Wire
- Trolley Mounted
- Easy Set Up & Operation
Compatible Optional Extras
What’s Included In The Box?
- Owner’s Manual
- Gas Hose
- 493S Inverter Power Source
- M4-4 Mtr MIG Welding Torch
- 5 Mtr Interconnecting Cables
- Earth Return Lead & Clamp
